Digital varnishing and digital metallization –
achieving maximum efficiency
Spot coating, relief varnishing, and metallization - all in one operation and applied with digital technology.
The digital all-in-one sheet finishing solution, which combines the varnishing know-how of Steinemann DPE and the metallization expertise of KURZ, sets completely new standards in terms of performance and flexibility of digital embellishment.
As a result, our customers can benefit from enormous quality, productivity, efficiency, and versatility on an industrial scale.

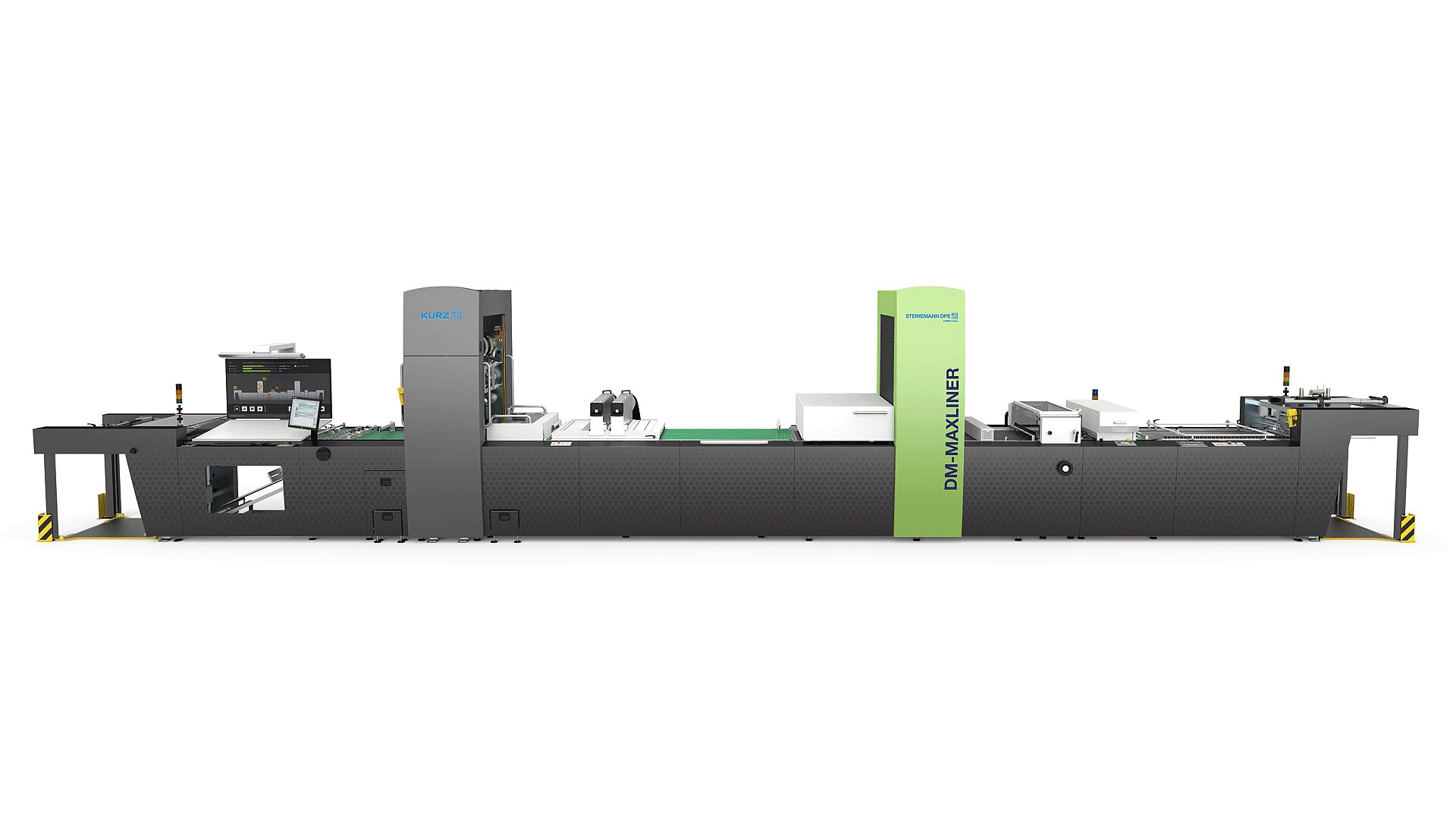

High performance with the DM-Maxliner 3D
Digital sheet embellishment. Efficient. Industrial.
With outputs of up to 10,000 sheets/h (pure inkjet UV varnish application) and up to 5,100 sheets/h (with DIGITAL METAL® application), the DM-MAXLINER can boost the finishing performance of professional printers in all areas: from packaging and commercial printing to web-to-print and letterpress.
Minimum setup times, maximum flexibility in terms of substrates and formats, and fast job productions increase efficiency and keep production costs low. The industrial design stands for reliability, durability, and low maintenance.
Our DM-Maxliner 3D is the professional solution for printers who want to future-proof their business, stand out from the competition, differentiate themselves, and win new customers with innovative applications.
Assets of the DM-Maxliner 3D
Top performance in digital varnishing and brilliant DIGITAL METAL® effects in a new dimension:
Video
Experience digital sheet embellishment at its best with our DM-Maxliner 3D.
Technical data
| Substrate | SI units | U.S. units | |
|---|---|---|---|
| Sheet size (width x length) | DM-MAXLINER 106 | max. 1,080 x 780 mm | max. 42.5 x 30.5 in |
| min. 290 x 320 mm | min. 11.4 x 12.6 in | ||
| DM-MAXLINER 76 | max. 760 x 760 mm | max. 30 x 30 in | |
| min. 290 x 310 mm | min. 11.4 x 12.2 in | ||
| Performance | |||
| Working speed* | 15 - 100 m/min | 50 - 328 fpm | |
| Digital Inkjet Varnishing | |||
| Inkjet system | UV – DoD – Inkjet – single pass | ||
| Native resolution | 600 dpi | 600 dpi | |
| Varnish lay down (with redundant inkjet system optional) | 4 – 50 (4 - 100) g/m² | 2.7 - 33.8 (2.7 - 67.6) lbs | |
| Register accuracy | +/- 0.2 mm | +/- 0.0078 in | |
| Varnish type | special UV Inkjet varnish | ||
| Print data | PDF (standard), BMP, TIFF, ... | ||
| Machine dimensions (length x height x width) | DM-MAXLINER 106 | 12 x 2.8 x 2.5 m | 39.4 x 9.2 x 8.2 ft |
| DM-MAXLINER 76 | 12 x 2.8 x 2.2 m | 39.4 x 9.2 x 7.2 ft | |
| Performance | SI units | U.S. units | |
|---|---|---|---|
| Working speed* | 15 - 100 m/min | 50 - 162 fpm | |
| DIGITAL METAL®application parameters | |||
| Number of simultaneously mountable DM-webs | 1 bis 7 | 1 bis 7 | |
| Transfer metallization | KURZ DIGITAL METAL® DT-S | ||
| Glue type | special UV inkjet glue | ||
| Machine dimensions (length x height x width) | DM-MAXLINER 106 | 1.5 x 2.8 x 2.5 m | 4.9 x 9.2 x 8.2 ft |
| DM-MAXLINER 76 | 1.5 x2.8 x 2.2 m | 4.9 x 9.2 x 7.2 ft | |
* Depending on sheet size, in-house conditions, sheet humidity, used substrates, sheet formats, used varnish, sheet distance, varnish lay down and sheet weight.
All technical data represent approximation values. Steinemann DPE reserves the right to make mechanical and design modifications.
Packaging
Today, packaging is much more than just a protective cover. See how digital embellishment can transform folding cartons into eye-catchers.
Web-to-Print
Personalization of printed matter has become commonplace for today's end-users. Find out about the attractive additional options that digital embellishment offers.
Commercial
In B2B, our digital print embellishment scores not only with compelling effects, but also with format and substrate flexibility.
Steinemann DPE single source
system solutions
Steinemann DPE, together with Leonhard KURZ, offers outstanding, high-quality system solutions for industrial, digital metallization and digital varnishing.
From the machine to the transfer metallization to the ink, we offer you all components from a single source – perfectly matched to each other.
Consumables
To achieve the best possible results, you need to use the right consumables that are optimized for your machine and your needs.
We will be happy to guide you.
Spares
Wear and tear is inevitable when machines are used intensively. We provide replacements.
Sustainability
Learn how sustainable print enhancement is possible with Steinemann DPE systems.
